Pipe Female Elbow
Female NPT both ends.

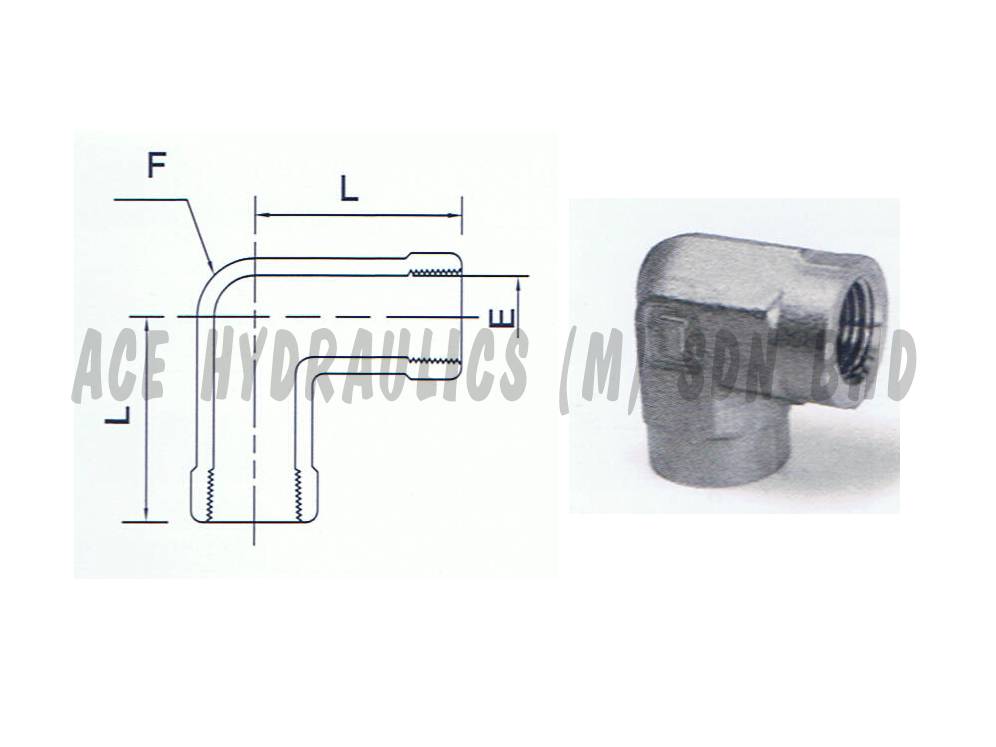

| Pipe Size | Dimensions | ||
| L | E | F (Wrench Flat) | |
| 1/8 | 24.0 | 8.9 | 12.7 |
| 1/4 | 29.0 | 11.7 | 17.5 |
| 3/8 | 34.5 | 15.0 | 20.6 |
| 1/2 | 37.0 | 18.7 | 25.4 |
| 3/4 | 46.5 | 23.5 | 31.8 |
| 1 | 48.8 | 29.7 | 42.9 |
