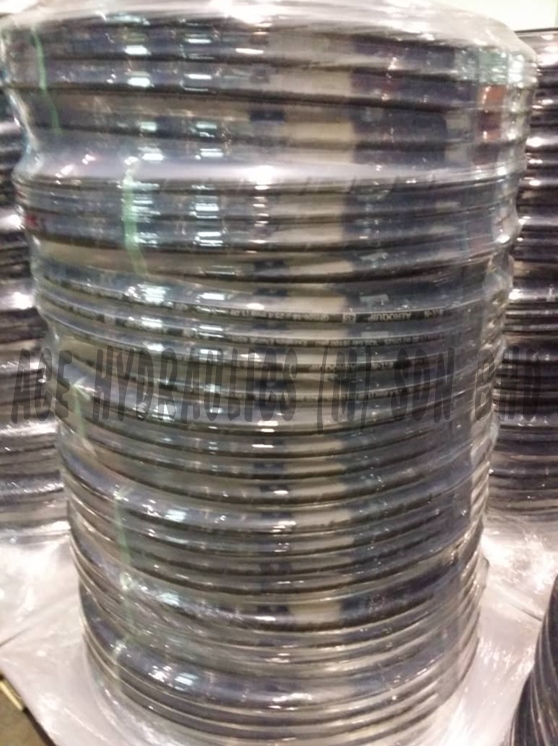

4 SH Hose
| Nominal | Inside | Wire | Outside | Working Pressure | Test Pressure | Burst Pressure | Bend Radius | Weight | ||
| mm | inch | mm | mm | mm | bar | psi | bar | bar | mm | kg / m |
| 19 | 3/4 | 19,0 | 28,4 | 32,2 | 420 | 6090 | 1000 | 1680 | 280 | 1,53 |
| 25 | 1 | 25,4 | 35,2 | 38,7 | 380 | 5510 | 910 | 1520 | 340 | 2,06 |
| 31 | 1-1/4 | 31,8 | 41,9 | 45,5 | 345 | 5000 | 830 | 1380 | 460 | 2,46 |
| 38 | 1-1/2 | 38,1 | 48,8 | 53,5 | 290 | 4205 | 695 | 1160 | 560 | 3,35 |
| 51 | 2 | 50,8 | 63,2 | 68,1 | 250 | 3625 | 600 | 1000 | 700 | 4,55 |
