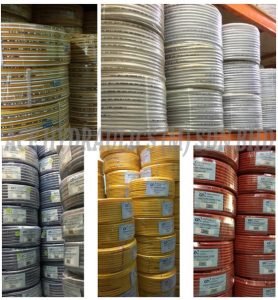

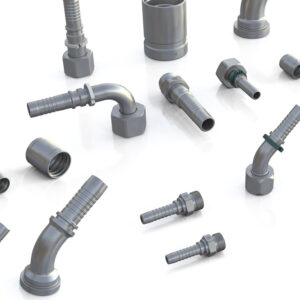

Hoses

Certificate

Tube Fittings

Size (mm)	2mm to 32mm
Size (inches)	1/8″ to 2″
Temperature Range	-190 to 600 °C
Media	Oil, Gas, Water, Light Chemicals
Material	Brass, Steel, S/S 316
Working Pressure	Up to 9,000 PSI
End Connections	Tube connections to NPT, BSPT, BSPP

Pressure Gauges

Dia Size	2-1/2″ and 4″
Temperature Range	-40 to 60 °C
Media	Oil, Gas, Air, Water
Material	Half and Fully S/S 316
Working Pressure	15 to 14,000 PSI / 1 to 1,000 Bar / 1 to 1,000 KG
End Connections	Bottom or Back, NPT, BSPP

Reducing / Full Ball Valves

Size (mm)	4mm to 42mm
Size (inches)	1/8″ to 2″
Temperature Range	-20 to 500 °C
Media	Oil, Gas, Water
Material	Steel and Stainless Steel
Working Pressure	250 – 500 bar
End Connections	2 way / 3 way, NPT, BSP, Tube Connections

Reducing / Full Ball Valves (Stainless Steel)

Size (mm)	4mm to 42mm
Size (inches)	1/8″ to 2″
Temperature Range	-20 to 500 °C
Media	Oil, Gas, Water
Material	Stainless Steel
Working Pressure	1,000 PSI
End Connections	2 way / 3 way, NPT, BSP, Tube Connections

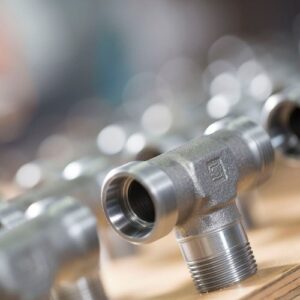

Pipe Fitting

Size	1/8″ to 2″
Type	Elbow, Cross, Tee, Straight Connectors
Temperature Range	-190 to 600 °C
Media	Oil, Gas, Water
Material	Stainless Steel and Steel
Working Pressure	150 to 3,000 PSI
End Connections	NPT, BSP

Pipe Clamp

Size (mm)	6mm to 450mm
Series	Light, Standard, Heavy, Twin
Material	Polypropylene, Polyamide
Base, Top Plate and Screws Material	Steel and Stainless Steel

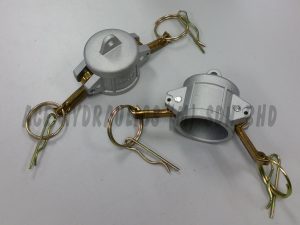

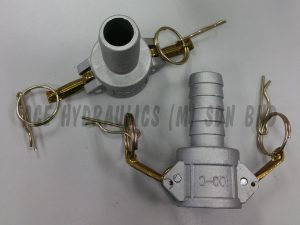

Quick Couplers

Size	1/4″ to 1″
Temperature Range	-40 to 110 °C
Media	Oil, Water, Light Chemical
Material	Brass, Steel, S/S 316
Working Pressure	Up to 5,000 PSI
End Connections	NPT, BSP

Copper Coil

MM Size (Outer Diameter)	4mm to 15mm
Inches Size (Outer Diameter)	1/8″ to 1/2″
Size (Internal Diameter)	0.8mm to 1mm / 0.71mm to 1.63mm
Temperature Range	Up to 200 °C
Media	Oil, Light Chemicals, Water, Gas
Working Pressure	150 PSI

Seamless Tubing

MM Size (Outer Diameter)	4mm to 42mm
Inches Size (Outer Diameter)	1/8″ to 1-1/2″
Thickness (mm)	0.5mm to 3mm
Thickness (inches)	0.028″ to 0.135″
Temperature Range	-20 to 600 °C
Media	Oil, Light Chemicals, Water, Gas
Material	Carbon Steel and SS316
Working Pressure	Up to 20,000 PSI

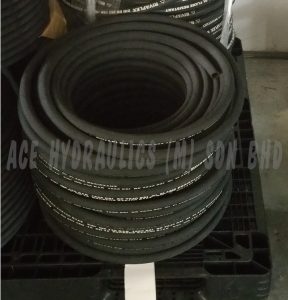

R1T - Single Wire Hose

Nominal		Inside	Braid	Outside	Working Pressure		Test Pressure	Burst Pressure	Bend Radius	Weight
mm	inch	mm	mm	mm	bar	psi	bar	bar	mm	kg / m
5	3/16	4,8	9,5	11,8	250	3625	600	1000	90	0,19
6	1/4	6,4	11,1	13,4	225	3265	540	900	100	0,21
8	5/16	7,9	12,7	15,0	215	3120	510	850	115	0,24
10	3/8	9,5	15,1	17,4	180	2610	430	720	125	0,33
12	1/2	12,7	18,3	20,6	160	2320	385	640	180	0,41
16	5/8	15,9	21,4	23,7	130	1885	310	520	200	0,45
19	3/4	19,0	25,4	27,7	105	1525	250	420	240	0,58
25	1	25,4	33,3	35,6	88	1275	210	350	300	0,88
31	1-1/4	31,8	40,5	43,5	63	915	150	250	420	1,23
38	1-1/2	38,1	46,8	50,6	50	725	120	200	500	1,51
51	2	50,8	60,2	64,0	40	580	96	160	630	1,97

R2T - Double Wire Hose

Nominal		Inside	Braid	Outside	Working Pressure		Test Pressure	Burst Pressure	Bend Radius	Weight
mm	inch	mm	mm	mm	bar	psi	bar	bar	mm	kg / m
5	3/16	4,8	11,1	13,4	415	6020	990	1650	90	0,31
6	1/4	6,4	12,7	15,0	400	5800	960	1600	100	0,33
8	5/16	7,9	14,3	16,6	350	5075	840	1400	115	0,39
10	3/8	9,5	16,7	19,0	330	4785	790	1320	125	0,50
12	1/2	12,7	19,8	22,2	275	3990	660	1100	180	0,59
16	5/8	15,9	23,0	25,4	250	3625	600	1000	200	0,71
19	3/4	19,0	27,0	29,3	215	3120	515	850	240	0,86
25	1	25,4	34,9	38,1	165	2395	395	650	300	1,28
31	1-1/4	31,8	44,5	48,3	125	1815	300	500	420	2,02
38	1-1/2	38,1	50,8	54,6	90	1305	215	360	500	2,20
51	2	50,8	63,5	67,3	80	1160	190	320	630	2,85

Sample 1

Sample 2

Sample 3

Sample 4

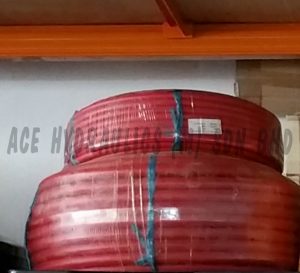

Multi Purpose Hose

Nominal	I.D.	O.D.	Working/ Burst Pressure	Weight	Volume	Coil Length
inch	mm	mm	bar	kg / mt	m³	mt
1/4	6.3	14.0	20 / 60	0.19	0.028	100
5/16	8.0	15.0	20 / 60	0.20	0.035	100
3/8	9.5	17.0	20 / 60	0.25	0.043	100
1/2	12.7	21.0	20 / 60	0.35	0.070	100
5/8	16.0	25.0	20 / 60	0.47	0.107	100
3/4	19.0	29.0	20 / 60	0.61	0.130	100
7/8	22.0	32.0	20 / 60	0.68	0.152	100
1	25.4	36.0	20 / 60	0.83	0.195	100
1-1/8	28.5	42.0	20 / 60	1.20	0.077	30
1-1/4	32.0	45.0	20 / 60	1.27	0.109	30
1-1/2	38.0	53.0	20 / 60	1.73	0.133	30

Air Hose Wip 10 Bar

Nominal	I.D.	O.D.	Working / Burst Pressure	Weight	Volume	Coil Length
inch	mm	mm	bar	kg / mt	m³	mt
1/4	6.4	13.0	10 / 30	0.17	0.028	100
5/16	8.0	14.0	10 / 30	0.18	0.035	100
3/8	9.5	16.0	10 / 30	0.24	0.043	100
1/2	12.7	21.0	10 / 30	0.38	0.070	100
5/8	16.0	25.0	10 / 30	0.50	0.100	100
3/4	19.0	28.0	10 / 30	0.58	0.130	100
1	25.4	35.0	10 / 30	0.79	0.112	60

Welded Stainless Hose

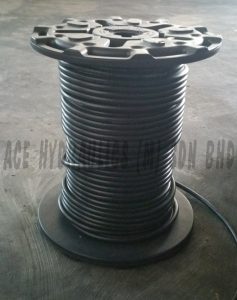

801 Multipurpose Hose

I.D.		O.D.		Working Pressure		Minimum Bend Radius		Weight
inch	mm	inch	mm	psi	MPa	inch	mm	Ibs/ft	kg/m
1/4	6.3	0.50	12,7	350	2,4	2-1/2	65	0.09	0,13
3/8	10	0.63	15,9	350	2,4	3	75	0.11	0,16
1/2	12,5	0.78	19,8	300	2,1	5	125	0.18	0,27
5/8	16	0.91	23,0	300	2,1	6	150	0.19	0,28
3/4	19	1.03	26,2	300	2,1	7	180	0.24	0,36
1	25	1.28	32,6	200	1,4	10	250	0.37	0,55

Paint Hose

Pneumatic Tubing

4 SH Hose

Nominal		Inside	Wire	Outside	Working Pressure		Test Pressure	Burst Pressure	Bend Radius	Weight
mm	inch	mm	mm	mm	bar	psi	bar	bar	mm	kg / m
19	3/4	19,0	28,4	32,2	420	6090	1000	1680	280	1,53
25	1	25,4	35,2	38,7	380	5510	910	1520	340	2,06
31	1-1/4	31,8	41,9	45,5	345	5000	830	1380	460	2,46
38	1-1/2	38,1	48,8	53,5	290	4205	695	1160	560	3,35
51	2	50,8	63,2	68,1	250	3625	600	1000	700	4,55

Hose Clips

PVC Yellow Spray Hose

I.D.	O.D.	Length	Working Pressure		Weight
mm	mm	meter	bar	psi	kg
8.5	14.5	100	40	600	13.5
10.0	16.0	100	40	600	16.0
13.0	20.0	100	30	450	23.5
19.0	27.5	100	30	450	41.0
25.0	33.0	100	20	300	47.0

Hex Nipple - Male NPT Both Ends

Pipe Size	Dimensions
Pipe Size	A	E	H
1/8	25.4	4.8	11.1
1/4	35.3	7.1	14.2
3/8	36.1	9.6	17.4
1/2	46.7	11.9	22.2
3/4	46.7	15.7	26.9
1	58.7	22.3	34.9

Hex Nipple - Male NPT to ISO Parallel

Pipe Size	BSP / ISO Thread Size	Dimensions
Pipe Size	BSP / ISO Thread Size	A	B	C	E	H
1/8	1/8 – 28 228/1	27.4	7.1	13.7	4.1	11.1
1/4	1/4 – 19 228/1	36.8	11.2	17.8	6.4	14.2
3/8	3/8 – 19 228/1	37.6	11.2	21.8	9.7	17.4
1/2	1/2 – 14 228/1	45.0	14.2	26.1	11.9	22.2
3/4	3/4 – 14 228/1	49.0	15.7	31.5	15.7	26.9
1	1 – 11 228/1	56.9	18.3	38.9	22.4	34.9

Hex Nipple - Male NPT to ISO Tapered

Pipe Size	BSP / ISO Thread Size	Dimensions
Pipe Size	BSP / ISO Thread Size	A	E	H
1/8	1/8 – 28 7/1	24.6	4.1	11.1
1/4	1/4 – 19 7/1	35.6	6.4	14.2
3/8	3/8 – 19 7/1	36.3	9.7	17.4
1/2	1/2 – 14 7/1	46.0	11.9	22.2
3/4	3/4 – 14 7/10	46.7	15.7	26.9
1	1 – 11 7/1	58.9	22.4	34.9

Hex Reducing Nipple

Male NPT to Reduced Male NPT.

P Pipe Size	P1 Reduced Pipe Size	Dimensions
P Pipe Size	P1 Reduced Pipe Size	A	E	H
1/4	1/8	30.7	4.8	14.2
3/8	1/8	32.0	4.8	17.4
3/8	1/8	32.0	7.1	17.4
1/2	1/8	37.2	4.8	22.2
1/2	1/4	41.7	7.1	22.2
1/2	3/8	41.7	9.6	22.2
3/4	1/4	41.7	7.1	26.9
3/4	1/2	46.7	11.9	26.9
1	1/4	49.3	7.1	34.9
1	1/2	54.1	11.9	34.9
1	3/4	54.1	15.7	34.9

Hex Long Nipple

Male NPT both ends.

Male Pipe Size	A (Available Lengths), In.					E	H Hex
Male Pipe Size	1.5	2.0	2.5	3.0	4.0	E	H Hex
1/8	O	O	O	O	N/A	4.8	11.1
1/4	O	O	O	O	O	7.1	14.2
3/8	O	O	O	O	O	9.7	17.4
1/2	N/A	O	N/A	O	O	11.9	22.2
3/4	N/A	O	N/A	O	O	15.7	26.9
1	N/A	N/A	N/A	O	O	22.4	34.9

Adapter - Female NPT to same size male NPT

P Pipe Size	Dimensions
P Pipe Size	A	E	H Hex
1/8	27.4	4.8	14.2
1/4	35.6	7.1	19.05
3/8	37.8	9.6	22.2
1/2	49.0	11.9	26.9
3/4	50.3	15.7	31.7
1	58.0	22.3	41.2

Adapter - Female NPT to Male ISO Tapered

NPT Thread Size	BSP / ISO Thread Size	Dimensions
NPT Thread Size	BSP / ISO Thread Size	A	C	E	H Hex
1/8	1/8 – 28 7/1	27.4	9.7	4.8	14.2
1/4	1/4 – 19 7/1	35.8	14.2	7.1	19.05
3/8	3/8 – 19 7/1	37.6	14.2	9.7	22.2
1/2	1/2 – 14 7/1	49.0	19.1	11.9	26.9
3/4	3/4 – 14 7/1	50.3	19.1	15.7	31.8
1	1 – 11 7/1	58.0	23.9	22.3	41.2

Reducing Adapter

Female NPT to reduced male NPT.

Female Pipe Size	Male Pipe Size	Dimensions
Female Pipe Size	Male Pipe Size	A	E	H Hex
1/4	1/8	31.5	4.8	19.05
3/8	1/8	33.5	4.8	22.2
3/8	1/4	37.8	7.1	22.2
1/2	1/8	40.0	4.8	26.9
1/2	1/4	44.5	7.1	26.9
1/2	3/8	44.5	9.6	26.9
3/4	1/4	45.7	7.1	31.8
3/4	3/8	45.7	9.6	31.8
3/4	1/2	51.1	11.9	31.8
1	1/4	50.8	7.1	41.2
1	1/2	55.3	11.9	41.2
1	1	54.9	15.7	41.2

Hex Bushing

Male NPT to reduced female NPT.

Male Pipe Size	Female Pipe Size	Dimensions
Male Pipe Size	Female Pipe Size	A	E	H Hex
1/4	1/8	26.7	7.1	14.2
3/8	1/8	21.8	8.5	17.4
3/8	1/4	30.0	9.6	19.05
1/2	1/8	27.4	8.5	22.2
1/2	1/4	27.4	11.7	22.2
1/2	3/8	35.6	11.9	22.2
3/4	1/4	27.4	11.4	26.9
3/4	3/8	27.4	15.0	26.9
3/4	1/2	41.4	15.7	26.9
1	1/4	34.8	11.4	34.9
1	3/8	34.8	14.7	34.9
1	1/2	34.8	18.5	34.9
1	3/4	47.0	22.4	34.9

Hex Coupling

Female NPT both ends.

Pipe Size	Dimensions
Pipe Size	A	E	H Hex
1/8	20.3	8.9	14.2
1/4	30.0	11.7	19.05
3/8	33.0	15.0	22.2
1/2	39.4	18.7	26.9
3/4	41.0	23.5	31.8
1	50.5	29.7	41.2

Hex Reducing Coupling

Female NPT to reduced female NPT.

P Pipe Size	P1 Reduced Pipe Size	Dimensions
P Pipe Size	P1 Reduced Pipe Size	A	E	H Hex
1/4	1/8	31.2	8.9	19.05
3/8	1/4	34.8	11.7	22.2
1/2	1/8	39.4	8.9	26.9
1/2	1/4	44.2	11.7	26.9
1/2	3/8	45.0	15.0	26.9
3/4	1/4	45.7	11.7	31.8
3/4	1/2	52.0	18.7	31.8
1	1/4	50.8	11.7	41.2
1	1/2	55.4	18.7	41.2
1	3/4	57.0	23.5	41.2

Pipe Female Elbow

Female NPT both ends.

Pipe Size	Dimensions
Pipe Size	L	E	F (Wrench Flat)
1/8	24.0	8.9	12.7
1/4	29.0	11.7	17.5
3/8	34.5	15.0	20.6
1/2	37.0	18.7	25.4
3/4	46.5	23.5	31.8
1	48.8	29.7	42.9

Street Elbow

Female to male NPT.

Pipe Size	Dimensions
Pipe Size	L	S	E	F Wrench Flat
1/8	26.4	22.4	4.8	12.7
1/4	29.0	29.0	7.1	17.5
3/8	36.0	32.0	9.6	20.6
1/2	39.6	39.6	11.9	25.4
3/4	48.5	42.4	15.7	31.8
1	48.8	49.2	22.3	42.9

Reducing Street Elbow

Female NPT to reduced male NPT.

P Pipe Size	P1 Reduced Pipe Size	Dimensions
P Pipe Size	P1 Reduced Pipe Size	L	S	E	F Wrench Flat
1/4	1/8	29.7	25.4	4.8	17.5
3/8	1/4	36.1	32.0	7.1	20.6
1/2	1/4	39.6	35.1	7.1	25.4
1/2	3/8	39.6	35.1	9.6	25.4
3/4	1/2	46.5	39.6	11.9	31.8
1	3/4	48.7	44.5	11.9	42.9

Pipe Male Elbow

Male NPT both ends.

Pipe Size	Dimensions
Pipe Size	L	E	F Wrench Flat
1/8	19.05	4.8	12.7
1/4	24.5	7.1	12.7
3/8	26.9	9.6	17.5
1/2	33.2	11.9	20.6
3/4	35.3	15.7	25.4
1	44.5	22.3	31.8

Accumulator

EO Metric Bite Type Fittings

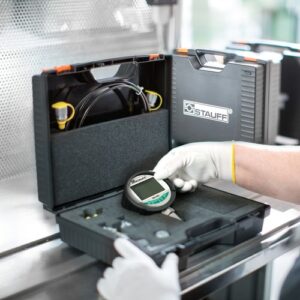

Test Hose

Catalog 1

Catalog 2

Catalog 3

Catalog 4

37° Flare Fittings

Size	1/8″ to 2″
Temperature Range	0 to 400°C
Media	Oil, Gas, Water, Light Chemicals
Material	Brass, Steel, S/S 316
Working Pressure	Up to 8,000 PSI
End Connections	JIC, NPT, BSPT, BSPP, SAE

Sample 5

Fluid Filter Element

Others

Air Gun

Pipe

Aluminium Manifold

Impact Drill Power Kit

Drill

Fitting

Loctite

Pipe

SRMY F.R.L Type

Fitting

DE-Lok

Fitting

Pipe

Electric HVLP Paint Sprayer

Air Filter

Model

F4000-15-W-F

Air Filter

Model

CKD W1000

Air Filter

Model

CKD R1000

CKD Filter Regulator

Model

W4000

Air Filter

Filter Regulator & Air Lubricator

Model

SAW 400D (Filter Regulator) & SAL 400 (Air Lubricator)

Air Filter

Model

SAR 300

Air Filter

Model

SAR 400

Main Line Filter

Model

SAFL 550

Main Line Filter

Model

SAFL 350

Air Filter

Model

SAF 400D

SGA

Sight Glass

Solenoid Valve

Model

SF6101

Solenoid Valve

Model

SF5101

Solenoid Valve

Model

SF4101

Solenoid Valve

Hoses

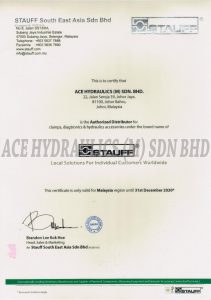

Certificate

Tube Fittings

Size (mm) 2mm to 32mm Size (inches) 1/8″ to 2″ Temperature Range -190 to 600 °C Media Oil, Gas, Water, Light Chemicals Material Brass, Steel, S/S 316 Working Pressure Up to 9,000 PSI End Connect Read More

Pressure Gauges

Dia Size 2-1/2″ and 4″ Temperature Range -40 to 60 °C Media Oil, Gas, Air, Water Material Half and Fully S/S 316 Working Pressure 15 to 14,000 PSI / 1 to 1,000 Bar / 1 to 1,000 KG End Connections B Read More

Reducing / Full Ball Valves

Size (mm) 4mm to 42mm Size (inches) 1/8″ to 2″ Temperature Range -20 to 500 °C Media Oil, Gas, Water Material Steel and Stainless Steel Working Pressure 250 – 500 bar End Connections 2 Read More

Reducing / Full Ball Valves (Stainless Steel)

Size (mm) 4mm to 42mm Size (inches) 1/8″ to 2″ Temperature Range -20 to 500 °C Media Oil, Gas, Water Material Stainless Steel Working Pressure 1,000 PSI End Connections 2 way / 3 way, NPT, BS Read More

Pipe Fitting

Size 1/8″ to 2″ Type Elbow, Cross, Tee, Straight Connectors Temperature Range -190 to 600 °C Media Oil, Gas, Water Material Stainless Steel and Steel Working Pressure 150 to 3,000 PSI End Conne Read More

Pipe Clamp

Size (mm) 6mm to 450mm Series Light, Standard, Heavy, Twin Material Polypropylene, Polyamide Base, Top Plate and Screws Material Steel and Stainless Steel

Quick Couplers

Size 1/4″ to 1″ Temperature Range -40 to 110 °C Media Oil, Water, Light Chemical Material Brass, Steel, S/S 316 Working Pressure Up to 5,000 PSI End Connections NPT, BSP

Copper Coil

MM Size (Outer Diameter) 4mm to 15mm Inches Size (Outer Diameter) 1/8″ to 1/2″ Size (Internal Diameter) 0.8mm to 1mm / 0.71mm to 1.63mm Temperature Range Up to 200 °C Media Oil, Light Chemicals, Water, G Read More

Seamless Tubing

MM Size (Outer Diameter) 4mm to 42mm Inches Size (Outer Diameter) 1/8″ to 1-1/2″ Thickness (mm) 0.5mm to 3mm Thickness (inches) 0.028″ to 0.135″ Temperature Range -20 to 600 °C Media Oil, Ligh Read More

R1T - Single Wire Hose

Nominal Inside Braid Outside Working Pressure Test Pressure Burst Pressure Bend Radius Weight mm inch mm mm mm bar psi bar bar mm kg / m 5 3/16 4,8 9,5 11,8 250 3625 600 1000 90 0,19 6 1/4 6,4 11,1 13,4 225 3265 540 Read More

R2T - Double Wire Hose

Nominal Inside Braid Outside Working Pressure Test Pressure Burst Pressure Bend Radius Weight mm inch mm mm mm bar psi bar bar mm kg / m 5 3/16 4,8 11,1 13,4 415 6020 990 1650 90 0,31 6 1/4 6,4 12,7 15,0 400 5800 96 Read More

Sample 1

Sample 2

Sample 3

Sample 4

Multi Purpose Hose

Nominal I.D. O.D. Working/ Burst Pressure Weight Volume Coil Length inch mm mm bar kg / mt m³ mt 1/4 6.3 14.0 20 / 60 0.19 0.028 100 5/16 8.0 15.0 20 / 60 0.20 0.035 100 3/8 9.5 17.0 20 / 60 0.25 0.043 100 1/2 12.7 21.0 20 / 6 Read More

Air Hose Wip 10 Bar

Nominal I.D. O.D. Working / Burst Pressure Weight Volume Coil Length inch mm mm bar kg / mt m³ mt 1/4 6.4 13.0 10 / 30 0.17 0.028 100 5/16 8.0 14.0 10 / 30 0.18 0.035 100 3/8 9.5 16.0 10 / 30 0.24 0.043 100 1/2 12.7 21.0 10 / Read More

Welded Stainless Hose

801 Multipurpose Hose

I.D. O.D. Working Pressure Minimum Bend Radius Weight inch mm inch mm psi MPa inch mm Ibs/ft kg/m 1/4 6.3 0.50 12,7 350 2,4 2-1/2 65 0.09 0,13 3/8 10 0.63 15,9 350 2,4 3 75 0.11 0,16 1/2 12,5 0.78 19,8 300 2,1 5 125 0.18 0,27 Read More

Paint Hose

Pneumatic Tubing

4 SH Hose

Nominal Inside Wire Outside Working Pressure Test Pressure Burst Pressure Bend Radius Weight mm inch mm mm mm bar psi bar bar mm kg / m 19 3/4 19,0 28,4 32,2 420 6090 1000 1680 280 1,53 25 1 25,4 35,2 38,7 380 5510 910 1520 3 Read More

Hose Clips

PVC Yellow Spray Hose

I.D. O.D. Length Working Pressure Weight mm mm meter bar psi kg 8.5 14.5 100 40 600 13.5 10.0 16.0 100 40 600 16.0 13.0 20.0 100 30 450 23.5 19.0 27.5 100 30 450 41.0 25.0 33.0 100 20 300 47.0

Hex Nipple - Male NPT Both Ends

Pipe Size Dimensions A E H 1/8 25.4 4.8 11.1 1/4 35.3 7.1 14.2 3/8 36.1 9.6 17.4 1/2 46.7 11.9 22.2 3/4 46.7 15.7 26.9 1 58.7 22.3 34.9

Hex Nipple - Male NPT to ISO Parallel

Pipe Size BSP / ISO Thread Size Dimensions A B C E H 1/8 1/8 – 28 228/1 27.4 7.1 13.7 4.1 11.1 1/4 1/4 – 19 228/1 36.8 11.2 17.8 6.4 14.2 3/8 3/8 – 19 228/1 37.6 11.2 21.8 9.7 17.4 1/2 1/2 – 14 228/1 45.0 14.2 26.1 11.9 Read More

Hex Nipple - Male NPT to ISO Tapered

Pipe Size BSP / ISO Thread Size Dimensions A E H 1/8 1/8 – 28 7/1 24.6 4.1 11.1 1/4 1/4 – 19 7/1 35.6 6.4 14.2 3/8 3/8 – 19 7/1 36.3 9.7 17.4 1/2 1/2 – 14 7/1 46.0 11.9 22.2 3/4 3/4 – 14 7/10 46.7 15.7 26.9 1 1 � Read More

Hex Reducing Nipple

Male NPT to Reduced Male NPT. P Pipe Size P1 Reduced Pipe Size Dimensions A E H 1/4 1/8 30.7 4.8 14.2 3/8 1/8 32.0 4.8 17.4 3/8 1/8 32.0 7.1 17.4 1/2 1/8 37.2 4.8 22.2 1/2 1/4 41.7 7.1 22.2 1/2 3/8 41.7 9.6 22.2 3/4 1/4 4 Read More

Hex Long Nipple

Male NPT both ends. Male Pipe Size A (Available Lengths), In. E H Hex 1.5 2.0 2.5 3.0 4.0 1/8 O O O O N/A 4.8 11.1 1/4 O O O O O 7.1 14.2 3/8 O O O O O 9.7 17.4 1/2 N/A O N/A O O 11.9 22.2 3/4 N/A O N/A O O 15.7 26.9 1 N/A Read More

Adapter - Female NPT to same size male NPT

P Pipe Size Dimensions A E H Hex 1/8 27.4 4.8 14.2 1/4 35.6 7.1 19.05 3/8 37.8 9.6 22.2 1/2 49.0 11.9 26.9 3/4 50.3 15.7 31.7 1 58.0 22.3 41.2

Adapter - Female NPT to Male ISO Tapered

NPT Thread Size BSP / ISO Thread Size Dimensions A C E H Hex 1/8 1/8 – 28 7/1 27.4 9.7 4.8 14.2 1/4 1/4 – 19 7/1 35.8 14.2 7.1 19.05 3/8 3/8 – 19 7/1 37.6 14.2 9.7 22.2 1/2 1/2 – 14 7/1 49.0 19.1 11.9 26 Read More

Reducing Adapter

Female NPT to reduced male NPT. Female Pipe Size Male Pipe Size Dimensions A E H Hex 1/4 1/8 31.5 4.8 19.05 3/8 1/8 33.5 4.8 22.2 3/8 1/4 37.8 7.1 22.2 1/2 1/8 40.0 4.8 26.9 1/2 1/4 44.5 7.1 26.9 1/2 3/8 44.5 9.6 26.9 3/4 Read More

Hex Bushing

Male NPT to reduced female NPT. Male Pipe Size Female Pipe Size Dimensions A E H Hex 1/4 1/8 26.7 7.1 14.2 3/8 1/8 21.8 8.5 17.4 3/8 1/4 30.0 9.6 19.05 1/2 1/8 27.4 8.5 22.2 1/2 1/4 27.4 11.7 22.2 1/2 3/8 35.6 11.9 22.2 3 Read More

Hex Coupling

Female NPT both ends. Pipe Size Dimensions A E H Hex 1/8 20.3 8.9 14.2 1/4 30.0 11.7 19.05 3/8 33.0 15.0 22.2 1/2 39.4 18.7 26.9 3/4 41.0 23.5 31.8 1 50.5 29.7 41.2

Hex Reducing Coupling

Female NPT to reduced female NPT. P Pipe Size P1 Reduced Pipe Size Dimensions A E H Hex 1/4 1/8 31.2 8.9 19.05 3/8 1/4 34.8 11.7 22.2 1/2 1/8 39.4 8.9 26.9 1/2 1/4 44.2 11.7 26.9 1/2 3/8 45.0 15.0 26.9 3/4 1/4 45.7 11.7 31. Read More

Pipe Female Elbow

Female NPT both ends. Pipe Size Dimensions L E F (Wrench Flat) 1/8 24.0 8.9 12.7 1/4 29.0 11.7 17.5 3/8 34.5 15.0 20.6 1/2 37.0 18.7 25.4 3/4 46.5 23.5 31.8 1 48.8 29.7 42.9

Street Elbow

Female to male NPT. Pipe Size Dimensions L S E F Wrench Flat 1/8 26.4 22.4 4.8 12.7 1/4 29.0 29.0 7.1 17.5 3/8 36.0 32.0 9.6 20.6 1/2 39.6 39.6 11.9 25.4 3/4 48.5 42.4 15.7 31.8 1 48.8 49.2 22.3 42.9

Reducing Street Elbow

Female NPT to reduced male NPT. P Pipe Size P1 Reduced Pipe Size Dimensions L S E F Wrench Flat 1/4 1/8 29.7 25.4 4.8 17.5 3/8 1/4 36.1 32.0 7.1 20.6 1/2 1/4 39.6 35.1 7.1 25.4 1/2 3/8 39.6 35.1 9.6 25.4 3/4 1/2 46.5 39.6 11. Read More

Pipe Male Elbow

Male NPT both ends. Pipe Size Dimensions L E F Wrench Flat 1/8 19.05 4.8 12.7 1/4 24.5 7.1 12.7 3/8 26.9 9.6 17.5 1/2 33.2 11.9 20.6 3/4 35.3 15.7 25.4 1 44.5 22.3 31.8

Accumulator

EO Metric Bite Type Fittings

Test Hose

Catalog 1

Catalog 2

Catalog 3

Catalog 4

37° Flare Fittings

Size 1/8″ to 2″ Temperature Range 0 to 400°C Media Oil, Gas, Water, Light Chemicals Material Brass, Steel, S/S 316 Working Pressure Up to 8,000 PSI End Connections JIC, NPT, BSPT, BSPP, SAE Read More

Sample 5
